Whitworth's (1981) Isothermal Free-Energy Surface
|   Tiled Menu   |   Tables of Content   |  Banner Video   |  Tohline Home Page   |

Text colored dark green has been extracted verbatim from a relatively early review by P. A. Strittmatter (1969):  The study of the internal structure of rotating stars is complicated by the necessity to introduce circulation currents and to solve Poisson's equation in two dimensions with an unknown boundary to the density distribution … With the advent of large-capacity, fast computers it has become possible to tackle the problem by direct numerical integration of the appropriate partial-differential equations. This method has been adopted by R. A. James (1964) in considering uniformly rotating polytopes and by R. Stoeckly (1965) who treated the case when the rotation velocity <math>~\Omega</math> varies as a Gaussian function of the distance from the rotation axis … Ostriker and his collaborators (cf. J. P. Ostriker & J. W.-K. Mark 1968) have developed an approach (called, by them, the self-consistent field or SCF method) in which Poisson's equation is replaced by its formal integral solution and an iterative procedure established in which the potential is derived from a guessed density distribution. A new density distribution is then obtained from the equation of hydrostatic support … While the present author has no experience in using the SCF method, it would appear to combine considerable power with reasonable speed of application and must probably be considered the most practical method of solution so far developed.


Table 1:  Poisson Equation
Integral Relation Differential Relation

<math>~ \Phi(\vec{x})</math>

<math>~=</math>

<math>~ -G \int \frac{\rho(\vec{x}^{~'})}{|\vec{x}^{~'} - \vec{x}|} d^3x^' \, .</math>

LSU Key.png

<math>\nabla^2 \Phi = 4\pi G \rho</math>


In this paragraph, teal-colored text has been extracted verbatim from §II.b of J. P. Ostriker and J. W.-K. Mark (1968, ApJ, 151, 1075 - 1088):  … we shall alternately solve each of the two problems as exactly as numerical techniques permit, and then iterate to obtain self-consistency.

i)             <math>~\rho(\vec{x})</math>          <math>~\xrightarrow{~~~~~\mathrm{potential ~theory}~~~~~~} ~ \Phi(\vec{x})</math>
ii)    <math>~\Phi(\vec{x})+\Psi(\varpi) ~\xrightarrow{~~~\mathrm{equilibrium ~condition}~~} ~ \rho(\vec{x})</math>

The integral relation between potential and density — as opposed to the differential relation, see Table 1 — encourages us to think that a "bad" density will, in step (i), lead to a "good" potential, which, by step (ii), will yield a "good" density which when substituted in (i) produces a "very good" potential, etc. The method works. It should be noted that an SCF approach is commonly used for determining molecular structure under the name Hartree-Fock.

Hachisu Self-Consistent-Field Technique

Izumi Hachisu

I. Hachisu

In 1986, Izumi Hachisu published two papers in The Astrophysical Journal Supplement Series (vol. 61, pp. 479-507, and vol. 62, pp. 461-499) describing "A Versatile Method for Obtaining Structures of Rapidly Rotating Stars." (Henceforth, we will refer to this method as the Hachisu Self-Consistent-Field, or HSCF, technique.) The HSCF technique has been built upon — and has further improved — the SCF method introduced by J. P. Ostriker & J. W.-K. Mark (1968). We have found the HSCF technique to be an extremely powerful tool for constructing equilibrium configurations of self-gravitating fluid systems under a wide variety of different circumstances. The photo of Professor Izumi Hachisu shown here, on the left, dates from the mid-1980s — about the time he developed this remarkably useful numerical technique; a more recent photo can be found on the web page associated with Professor Hachisu's current faculty appointment at the University of Tokyo, Komaba.

Constructing Two-Dimensional, Axisymmetric Structures

As has been explained in an accompanying discussion, our objective is to solve an algebraic expression for hydrostatic balance,

<math>~H + \Phi + \Psi = C_0</math> ,

in conjunction with the Poisson equation in a form that is appropriate for two-dimensional, axisymmetric systems, namely,

<math>~ \frac{1}{\varpi} \frac{\partial }{\partial\varpi} \biggl[ \varpi \frac{\partial \Phi}{\partial\varpi} \biggr] + \frac{\partial^2 \Phi}{\partial z^2} = 4\pi G \rho . </math>

Steps to Follow

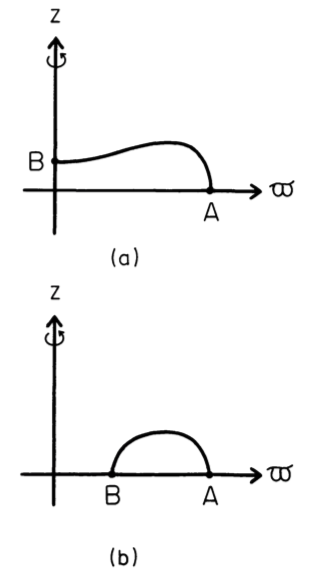

Figure 1 extracted from I. Hachisu (1986)

"A Versatile Method for Obtaining Structures of Rapidly Rotating Stars"

ApJS, vol. 61, pp. 479-507 © American Astronomical Society

HSCF Meridional Plane
Two points A and B on the surface specify a model uniquely: (a) spheroidal structure; (b) toroidal structure.
  1. Choose a particular barotropic equation of state.   More specifically, functionally define the density-enthalpy relationship, <math>~\rho(H)</math>, and identify what value, <math>~H_\mathrm{surface}</math>, the enthalpy will have at the surface of your configuration. For example, if a polytropic equation of state is adopted, <math>~H_\mathrm{surface} = 0</math> is a physically reasonable prescription.
  2. Choosing from, for example, a list of astrophysically relevant simple rotation profiles, specify the corresponding functional form of the centrifugal potential, <math>~\Psi(\varpi)</math>, that will define the radial distribution of specific angular momentum in your equilibrium configuration. If the choice is uniform rotation, then <math>~\Psi = - \varpi^2 \omega_0^2/2 \, ,</math> where <math>~\omega_0</math> is a constant to be determined.
  3. On your chosen computational lattice — for example, on a cylindrical-coordinate mesh — identify two boundary points, A and B, that will lie on the surface of your equilibrium configuration. These two points should remain fixed in space during the HSCF iteration cycle and ultimately will confine the volume and define the geometry of the derived equilibrium object. Note that, by definition, the enthalpy at these two points is, <math>~H_A = H_B = H_\mathrm{surface}</math>.
  4. Throughout the volume of your computational lattice, guess a trial distribution of the mass density, <math>~\rho(\varpi,z)</math>, such that no material falls outside a volume defined by the two boundary points, A and B, that were identified in Step #3. Usually an initially uniform density distribution will suffice to start the SCF iteration.
  5. Via some accurate numerical algorithm, solve the Poisson equation to determine the gravitational potential, <math>~\Phi(\varpi,z)</math>, throughout the computational lattice corresponding to the trial mass-density distribution that was specified in Step #4 (or in Step #9).
  6. From the gravitational potential determined in Step #5, identify the values of <math>~\Phi_A</math> and <math>~\Phi_B</math> at the two boundary points that were selected in Step #3.
  7. From the "known" values of the enthalpy (Step #3) and the gravitational potential (Step #6) at the two selected surface boundary points A and B, determine the values of the constants, <math>~C_0</math> and <math>~\omega_0</math>, that appear in the algebraic equation that defines hydrostatic equilibrium.
  8. From the most recently determined values of the gravitational potential, <math>~\Phi(\varpi,z)</math> (Step #5), and the values of the two constants, <math>~C_0</math> and <math>~\omega_0</math> just determined (Step #7), determine the enthalpy distribution throughout the computational lattice.
  9. From <math>~H(\varpi,z)</math> and the selected barotropic equation of state (Step #1), calculate an "improved guess" of the density distribution, <math>~\rho(\varpi,z)</math>, throughout the computational lattice.
  10. Has the model converged to a satisfactory equilibrium solution? (Usually a satisfactory solution has been achieved when the derived model parameters — for example, the values of <math>~C_0</math> and <math>~\omega_0</math> — change very little between successive iterations and the viral error is sufficiently small.)
    • If the answer is, "NO":   Repeat steps 5 through 10.
    • If the answer is, "YES":   Stop iteration.
